Pallets

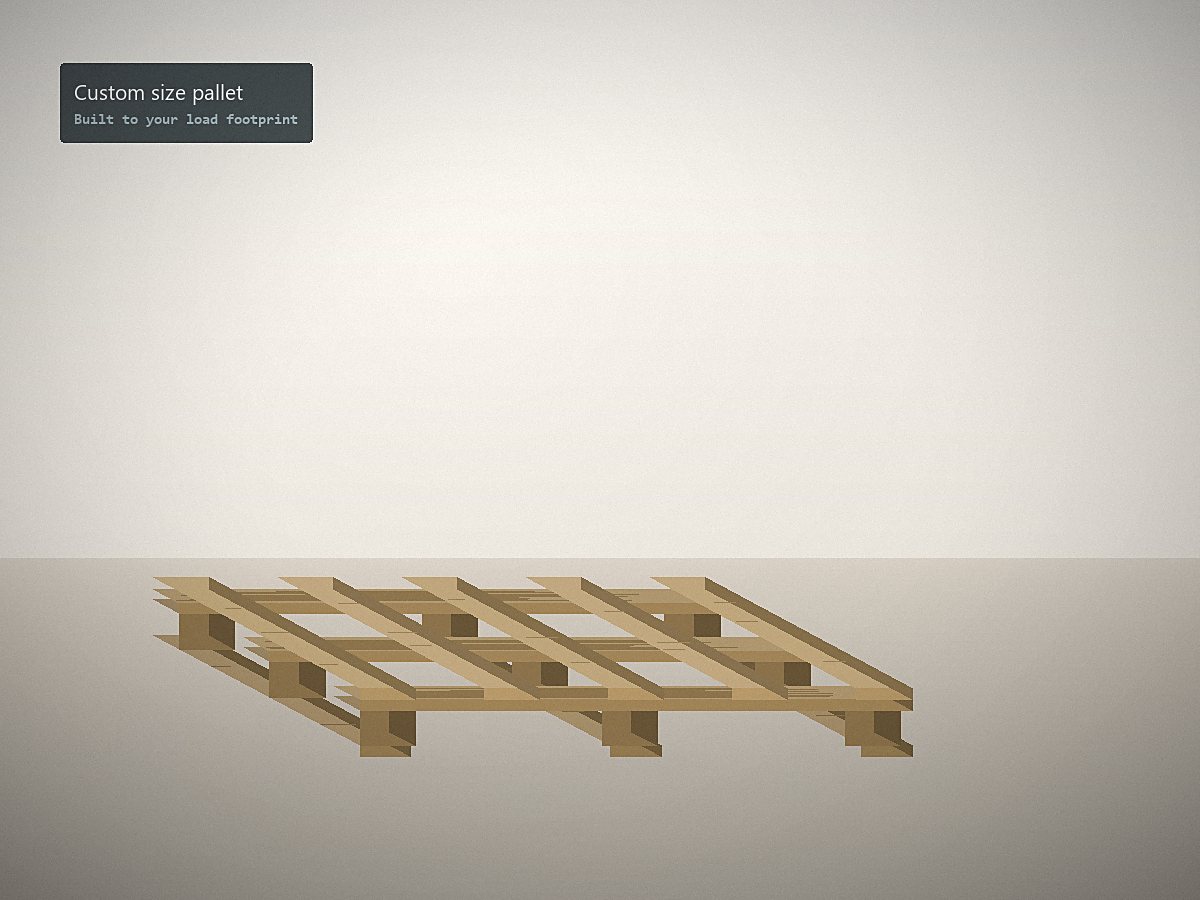

Custom size pallets

Built to your load footprint, which is normally cheaper than a standard pallet plus the damage overhang causes.

ISPM 15 on request PEFC chain of custody
Material Pine and spruce, kiln-dried
Gauge Board thickness to specification, 16 – 25 mm
MOQ 200 pallets per specification
Lead time 18 – 22 working days ex works

Stock specifications

Every line below is held as a running specification. Sizes outside this table are produced to order from one production run.

Code Dimensions Load class Timber Treatment Unit weight Per stack Add to enquiry
MV-CU-1140 1140 × 1140 mm SWL 1200 kg Pine Untreated 23 kg 22
MV-CU-1000 1000 × 1000 mm SWL 1000 kg Pine Untreated 18 kg 26
MV-CU-1300 1300 × 1100 mm SWL 1500 kg Pine ISPM 15 heat treated 27 kg 20
MV-CU-SPEC To drawing To specification Pine or spruce Optional Calculated Calculated

When a standard pallet is the expensive option

Overhang is what costs money. A load 60 mm wider than the pallet on each side gets crushed corners in transit, cannot be stretch-wrapped tightly, and takes damage every time it passes a door frame. Over a year the write-offs exceed the difference in pallet price several times over.

A pallet built to the footprint removes all of it.

What we need

The load dimensions, the load weight, whether it is racked or floor-stacked, forklift or pallet-truck handling, and the destination. From that we issue a drawing for approval before anything is cut.

The minimum, plainly

200 pallets. Below that a custom size costs more per unit than the damage it prevents, and we will say so rather than take the order. If your annual volume is under 200, a standard size with corner protection is usually the better answer.

Often ordered together

Pallet collars ISPM 15 on request
Pallets

Pallet collars

Gauge
Board thickness 19 – 20 mm
Material
Pine, four or six hinges
MOQ
1 stack (50 collars)
Stock sizes
4

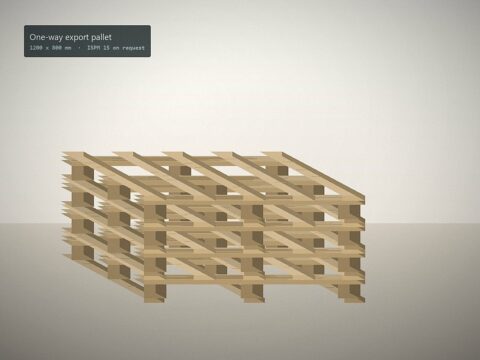

One-way export pallets ISPM 15 on request
Pallets

One-way export pallets

Gauge
Board thickness 16 – 18 mm
Material
Pine and spruce, kiln-dried
MOQ
1 truck for custom sizes, 1 stack for stock
Stock sizes
4

Tell us what you need on a pallet. We will price the truck.

Send a specification, a competitor product code, or a photo of what you currently buy. You get a written quotation with pallet configuration and delivered price within two working days.
